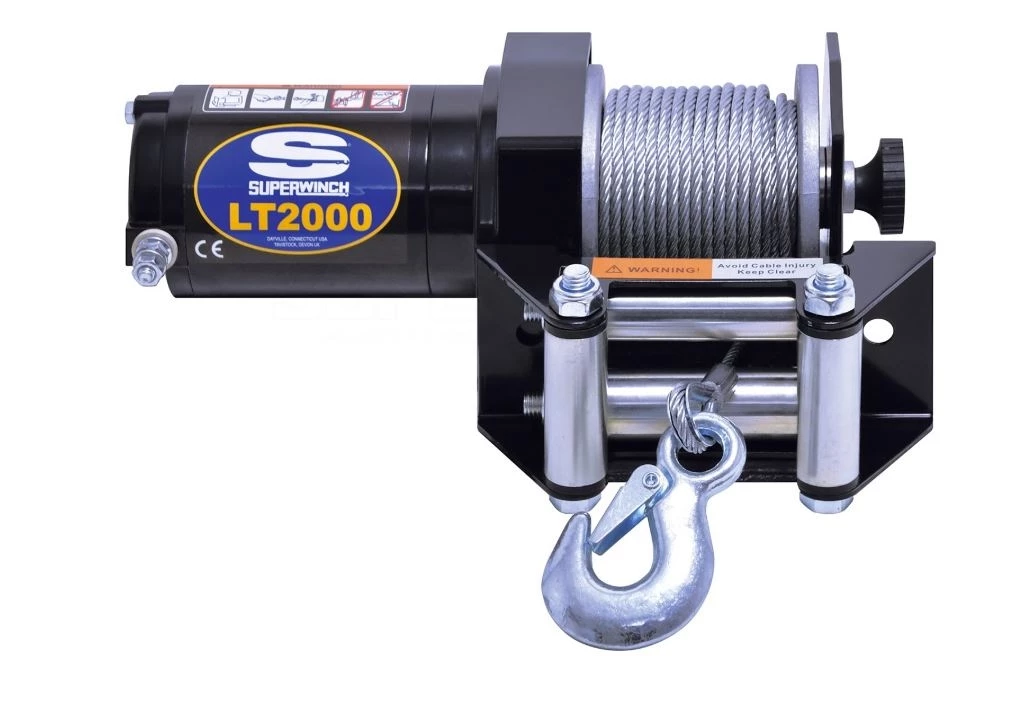

Built for action, the Superwinch LT2000 winch provides up to 2,000 lbs of reliable pulling power. This utility/multi purpose winch features a free-spooling pull-and-turn clutch and a handheld wired remote control, perfect for a variety of users. Perfected over the years, the LT Series offer unmatched durability and performance.
Features
โข 12V DC 2,000 lbs rated line pull
โข Sealed 1.0 HP permanent magnet motor
โข 1-Stage planetary gearing with 153:1 ratio
โข Circuit breaker protected
โข Free-spooling, pull and turn clutch
โข 5/32 in x 50 ft steel wire rope
โข Permanent/latched hook
โข Zinc plated 4-way roller fairlead
โข Handle bar mounted rocker switch
ย
Specifications
Brake: N/A
Clutch: Free-Spooling, Pull and Turn
Dimensions: 11.0in L x 4.1in D x 4.1in H (285mm L x 105mm D x 105mm H)
Drum Diameter: N/A
Drum Length: 2.83in (72.0mm)
Fairlead: N/A
Gearing: 1-Stage Planetary
Hook: Latched with Rope Thimble, Permanent
Installed Weight: 12 lbs (5.4 kg)
Line Pull, 0 lbs: 10 Amps Motor Draw/10.0 FPM (3.0 MPM) Line Speed
Line Pull, 2,000 lbs: 100 Amps Motor Draw/2.5 FPM (0.8 MPM) Line Speed
Motor: 1.0 HP Permanent Magnet
Mounting Bolt Pattern: 2 Hole, 3.15 (80mm) on center
Rated Line Pull: 2,000 lbs (907.2 kg)
Remote: Hand Held, 8ft cord
Rope: Steel Wire 5/32in x 49ft (3.9mm x 15m)
Warranty: 1 Year Limited
